21700 · Tabless Cell

Engineered for
Low Resistance.
Built for High Output.

Where other cells throttle under load, the 5000T holds the line. Tabless architecture and sub-3 mΩ resistance mean the full capacity is available when it matters — not just on a spec sheet.

Nominal Capacity
5 Ah
Max Discharge
60 A
Energy Density
267 Wh/kg

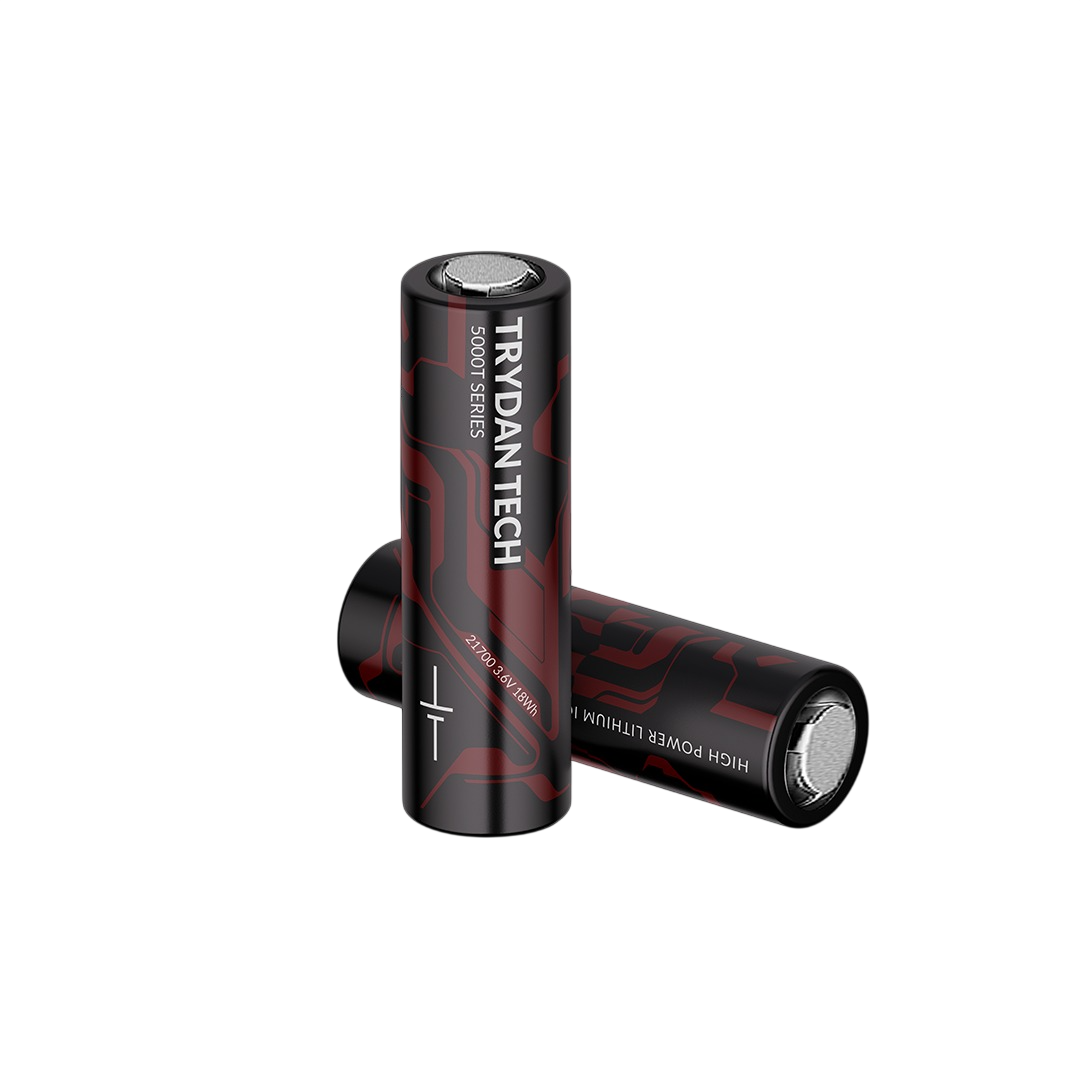

Trydan 5000T Series
Specifications

Every number is measured, not estimated.

Form Factor
21700 Cylindrical
Nominal Voltage
3.6 V
Nominal Capacity
5 Ah 18 Wh
Energy Density
267 Wh/kg
Max Discharge Current
60 A 125 A pulse (2 s)
Cycle Life
600+ Cycles
Operating Temperature
−20 °C to 80 °C
Features

The architecture behind the numbers.

Ultra-low internal resistance

<3 mΩ AC impedance enables efficient power delivery with reduced energy loss.

Minimal voltage drop under load

Maintains stable output even at high discharge rates.

More usable capacity

Delivers more of the rated 5 Ah in real-world conditions, extending runtime under load.

Tabless architecture

Enables uniform current distribution for improved power delivery and reduced thermal stress.

Thermal efficiency

Optimized design reduces heat generation during high discharge and fast charge operation.

Consistent high-load performance

Supports sustained high discharge and pulse currents for dynamic applications.

Performance
Data coming soon
Low Temperature Discharge
Data coming soon
Cycle Life
Data coming soon
Applications

Built for environments where cells fail. Trusted where they can't.

Drones & UAV Systems

Sustained 60 A discharge keeps rotors at full thrust through demanding flight profiles without thermal cutback.

Power Tools

125 A pulse capacity handles peak motor loads without the voltage sag that limits tool performance under heavy cuts.

E-Mobility

267 Wh/kg in a standard 21700 form factor — more range, less weight, and reliable cold-weather performance down to −20 °C.

Robotics

Stable output under variable load cycles across a wide operating range — consistent whether the joint is idle or under full torque.
